When you get a new Hangkai 48-volt electric outboard motor, you might wonder if it comes with gear oil in the lower unit. Many people assume these motors ship without oil, similar to gas outboards. This article looks into whether the Hangkai manual covers this, if running it without checking the oil can cause damage, and how to check and change the gear oil in the lower unit.
Checking the Hangkai Owner's Manual
It's a good idea to follow the owner's manual closely, especially if you're new to these motors. Some people buy these on a whim and expect them to work right out of the box. The Hangkai manual has very little information about gear oil. The only mention is under "familiar breakdown and solution method," where it says, "gear box should replace gear oil for 3 months ago." This suggests that if the gearbox breaks down, it might be because the oil wasn't replaced.
Opening the Lower Unit
To check the gear oil, you need to get into the lower unit. Here's how:
- Rotate the motor: Turn the motor all the way around and tip it up. There's a pin to hold it at an angle.

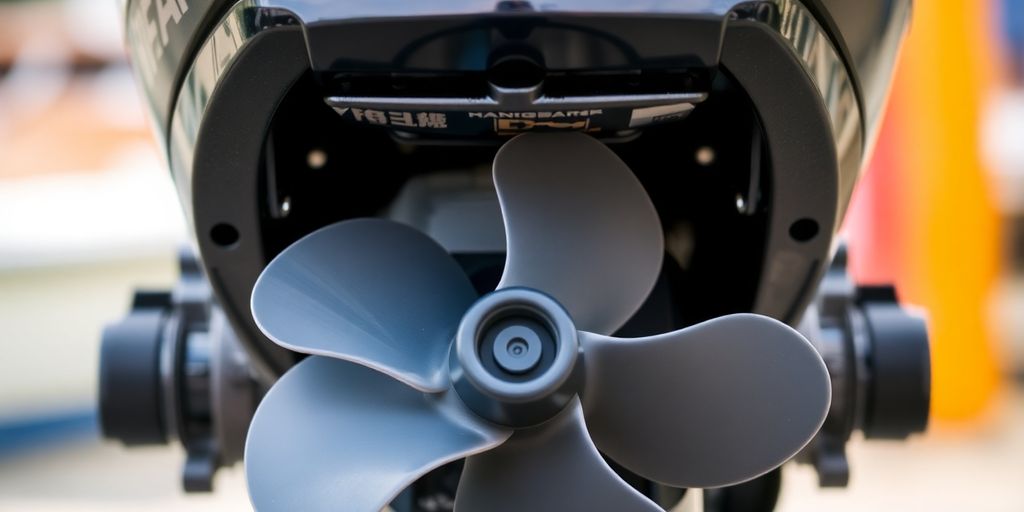

- Remove the propeller:
- Take out the cotter pin with pliers.
- The prop should slide right off. It has an aluminum center that fits over a pin.
- Pull out the pin.
- Access the gearbox: With the prop and pin out, you'll see two nuts that look like Allen key fittings. This area might feel a bit greasy, which is a good sign. There's likely a seal inside. The parts often have a light coat of grease already.
What's Inside the Gearbox?
Unlike many gas outboards that have threaded fittings for draining and refilling oil, the Hangkai electric outboard has these fittings cast into the metal, but they aren't tapped. This means you can't just drain and refill it like a typical gas outboard.
When you open the cover, you'll find a bearing and some brown gear oil. It might feel thin, especially if it's cold. The good news is that there was oil in the unit from the factory. The gears are metal, and the oil smells like car differential fluid, not regular motor oil. While there isn't a lot of oil, it's present.
Key Takeaways
- The Hangkai 48-volt electric outboard motor does come with gear oil from the factory.
- The oil is a brown, thin gear oil, not regular motor oil.
- The gearbox contains metal gears.
- The manual's only mention of gear oil is in the troubleshooting section, implying replacement every three months.
Replacing the Gear Oil
Even though there's oil, you might want to replace it with something thicker. A high-performance gear lube, like SAE 90, designed for outboard lower units, is a good choice. To replace the oil:
- Drain the old oil: Carefully dump out the old oil. It might be a greenish-brown color but shouldn't have many metal shavings.
- Clean the unit: Wipe the inside clean. The cover has a rubber O-ring that helps seal it.
- Add new oil: Pour in the new gear lube. Don't overfill it, but adding a bit more than was originally there is fine. The oil can ride up the shaft if there's too much.
- Reassemble:
- Put the cover back on.
- Tighten the two screws. The manual doesn't give torque specs, so just snug them down.
- Wipe off any extra oil.
- Regrease the shaft with marine grease.
- Put the key back through the shaft (grease can help hold it).
- Pop the propeller back on.
- Insert the cotter pin and bend it back out.
Even with new oil, the gearbox might still be noisy. However, you'll know it's properly lubricated, which is important for the motor's life.
